บ้าน > ผลิตภัณฑ์ > เชื่อมกลึงม้วน > Self Aligned Welding Turning Rolls PU Roller For 60t Weldment

Self Aligned Welding Turning Rolls PU Roller For 60t Weldment

รายละเอียดสินค้า

Place of Origin: China

ชื่อแบรนด์: Ronniewell

ได้รับการรับรอง: CE,ISO,CSA

Model Number: HGZ-40

เงื่อนไขการชําระเงินและการจัดส่ง

Minimum Order Quantity: 1set

ราคา: pls confirm with us

Packaging Details: Mainframe naked, spare parts packed in case

Delivery Time: 30working days

Payment Terms: 30% TT in advance, 70% TT before the shipment

Supply Ability: 50set/month

รับราคาที่ดีที่สุด
ไฮไลต์:

Vessel Turning Rolls

,

turning rolls welding

ใบสมัคร:
หอลม / ท่อส่ง / ปิโตรเคมี
ฟังก์ชัน:
จับและหมุนการเชื่อมแบบวงกลม
404 Not Found:
อัตโนมัติเหมาะสำหรับงานที่มีเส้นผ่านศูนย์กลางต่างกัน
โครงสร้าง:
เครื่องเขียนไม่มีรถเข็น
ความจุ:
40t สำหรับชิ้นส่วนพลังงานหนึ่งชิ้นและชิ้นส่วนที่ไม่ทำงานหนึ่งชิ้น
กลุ่ม:
ชิ้นส่วนไฟฟ้าหนึ่งชิ้นและชิ้นส่วนที่ไม่ทำงานสองชิ้น
แรงดันไฟฟ้า:
ตามที่ต้องการ
สี:
ตามที่ต้องการ
ใบสมัคร:
หอลม / ท่อส่ง / ปิโตรเคมี
ฟังก์ชัน:
จับและหมุนการเชื่อมแบบวงกลม
404 Not Found:
อัตโนมัติเหมาะสำหรับงานที่มีเส้นผ่านศูนย์กลางต่างกัน
โครงสร้าง:
เครื่องเขียนไม่มีรถเข็น
ความจุ:
40t สำหรับชิ้นส่วนพลังงานหนึ่งชิ้นและชิ้นส่วนที่ไม่ทำงานหนึ่งชิ้น
กลุ่ม:
ชิ้นส่วนไฟฟ้าหนึ่งชิ้นและชิ้นส่วนที่ไม่ทำงานสองชิ้น
แรงดันไฟฟ้า:
ตามที่ต้องการ
สี:
ตามที่ต้องการ
Self Aligned Welding Turning Rolls PU Roller For 60t Weldment

Exported Self Aligned Welding Turning Roll With PU Roller For 60t Weldment







Brief introduction:

40t standard welding turning roll with one extra idler piece for 60t weldments. It is suitable for longer job which need more support points.







Function of welding turning roll:

  • Welding turning roll is mainly used in switching position of cylinder work piece, to get the ideal welding position and speed.

  • Usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system.

  •  Also it can be used in manual welding, assembling, polishing and crack-defection, etc.







Detail information:

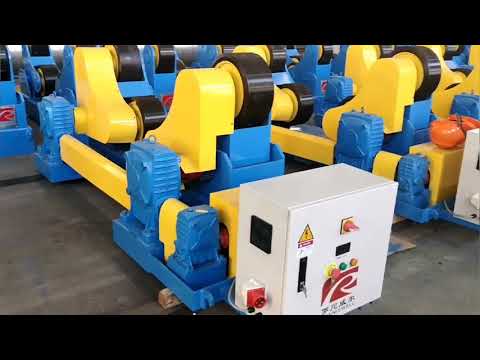

  • Welding turning roll mainly consist of power unit, idler unit, electric control box and hand control panel.

  • The turning roll is used for the inside and outside circumferential and  longitudinal welding.

  • 20% overweight design, could making the turning roll focus more.

  • Each motors and reducers have cover, careful design, ensure the safety.

  • All the parts using well-known brands in China or other countries. Quality is reliable.

  • Speed control: Variable Frequency Drive (VFD)







Main Technical Parameters



Model

HGZ-05

HGZ-10

HGZ-20

HGZ-40

HGZ-60

HGZ-80

Rated loading

(T)

5

10

20

40

60

80

Vessel diameter

range (mm)

250-2300

320-2800

500-3500

600-4200

750-4800

850-5000

PU roller

 dia. And width

(mm)

250*100

300*120

350*140

400*180

450*180*2

450*200*2

Linear speed

 (mm/min)

100-1000mm/min

Speed control

Variable frequency drive speed control

Motor power

(kW)

0.75

1.1

1.5

3

4

4

Traveling speed

 - Optional

(mm/min)

3000mm/min

Traveling speed

- Optional

(mm/min)

2*0.37

2*0.55

2*0.75

2*1.1

2*1.5

2*2.2



Option:

  • Polyurethane roller, Rubber Roller or steel roller;
  • Anti creep function;
  • Hydraulic lifting for fit up pipes;
  • Automatic traveling or manual traveling on the rail;
  • Customization







Self aligned welding turning roll description:

  • The series welding turning roll is absorbing advantages of similar products at home and abroad, designed and manufactured by us according to the operation requirements of several pressure vessel factories.

  • Production is comply with mechanical standard JB/T 9187-1999;

  • It is the device for special purpose adopted to weld metal cylinder especially pressure vessel.

  • It has advantages of advanced technology, reliable quality and simple operation.

  • The welding truning roll series includes the self-aligned, the adjustable, the vehicle, the tilting and the anti-drift types.

  • This self aligend welding turning roll is used to weld, polish and assemble the cylinder-shells;

  • It can be aligned by itself according to the size of the shell;

  • It can be controlled with AC frequency converter;

  • The linear velocity is displayed by the digital(Optional).

  • It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.

  • We also can design and customize various types of the welding rotator in accordance with the customers requirement.







Delivery photo:

Package in the container

Self Aligned Welding Turning Rolls PU Roller For 60t Weldment 0







Name of the machine:
welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls,

fit up rotator, self-aligned welding turning roll, self-aligning welding turning roll, self

adjustable welding turning roll, self aligned roller stand, wheel frame, roller frame for

wind tower welding, automatic adjustable welding pipe rotator, conventional welding

turning roll, bolt adjustable welding turning roll, sand blasting rotator, painting rotator,

welding turning roll, pipe welding turning roll, pipe turning rolls, 1+1 hydraulic fit up

rotator, two in one fit up station
